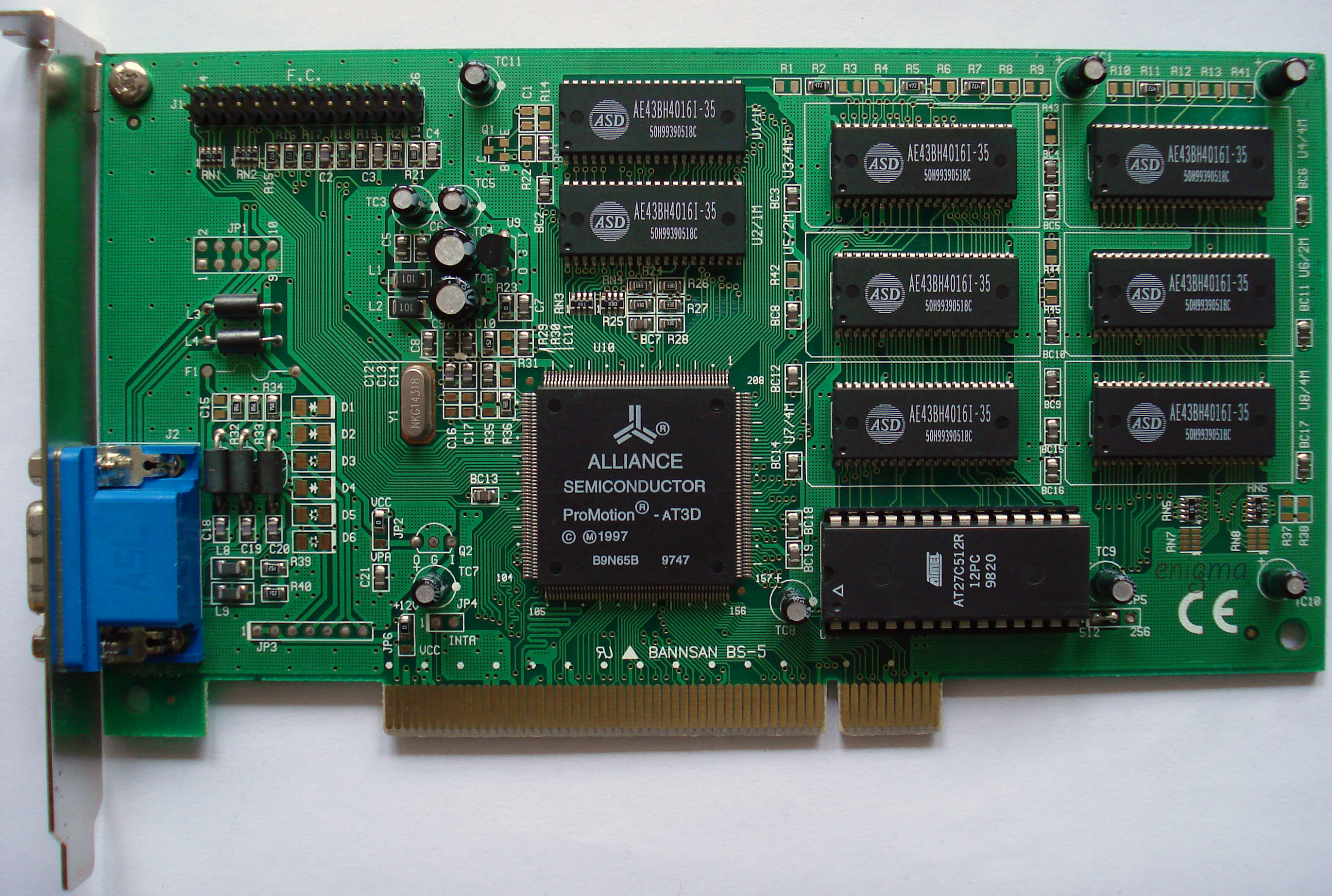

unidentified VGA card Alliance Semiconductor ProMotion 128 AT3D
| Technical details | |
| Name: | ? |
| Company: | ? |
| Chipset: | Alliance Semiconductor ProMotion 128 AT3D at 60 MHz |
| Bus: | PCI |
| RAM: | 4 MB EDO DRAM 35 ns 128 bit at 60 MHz |
| DAC: | integrated ?? MHz, 24 bit |
| Connectors: | VGA, VESA |
| PCI-ID: | VENDOR 1142 DEVICE 643D |
| FCC-ID: | ? |
| Manufactured: | 1997 |
The Alliance ProMotion was advertised to stomp every other 3D accelerator at this time into the ground. It features 128 bt width memory bus and a full triangle setup on chip. However reality speaks for itself (see video).
ProMotion 128 AT3D drivers
ProMotion 128 AT3D press release
VESA Info

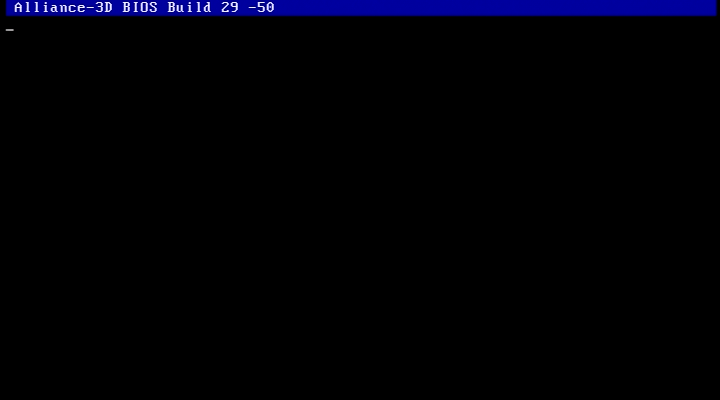

BIOS message:

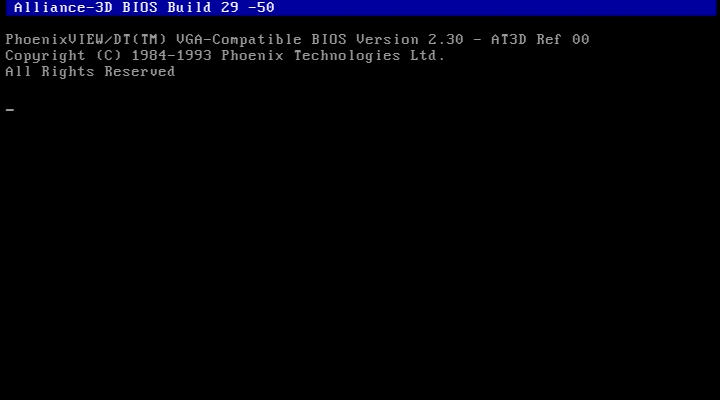

BIOS message later (oh its Revision 00:
ProMotion 128 AT3D performing 3DMark99Max, 3DMark2000, XL-R8R, ATI Dawn:
