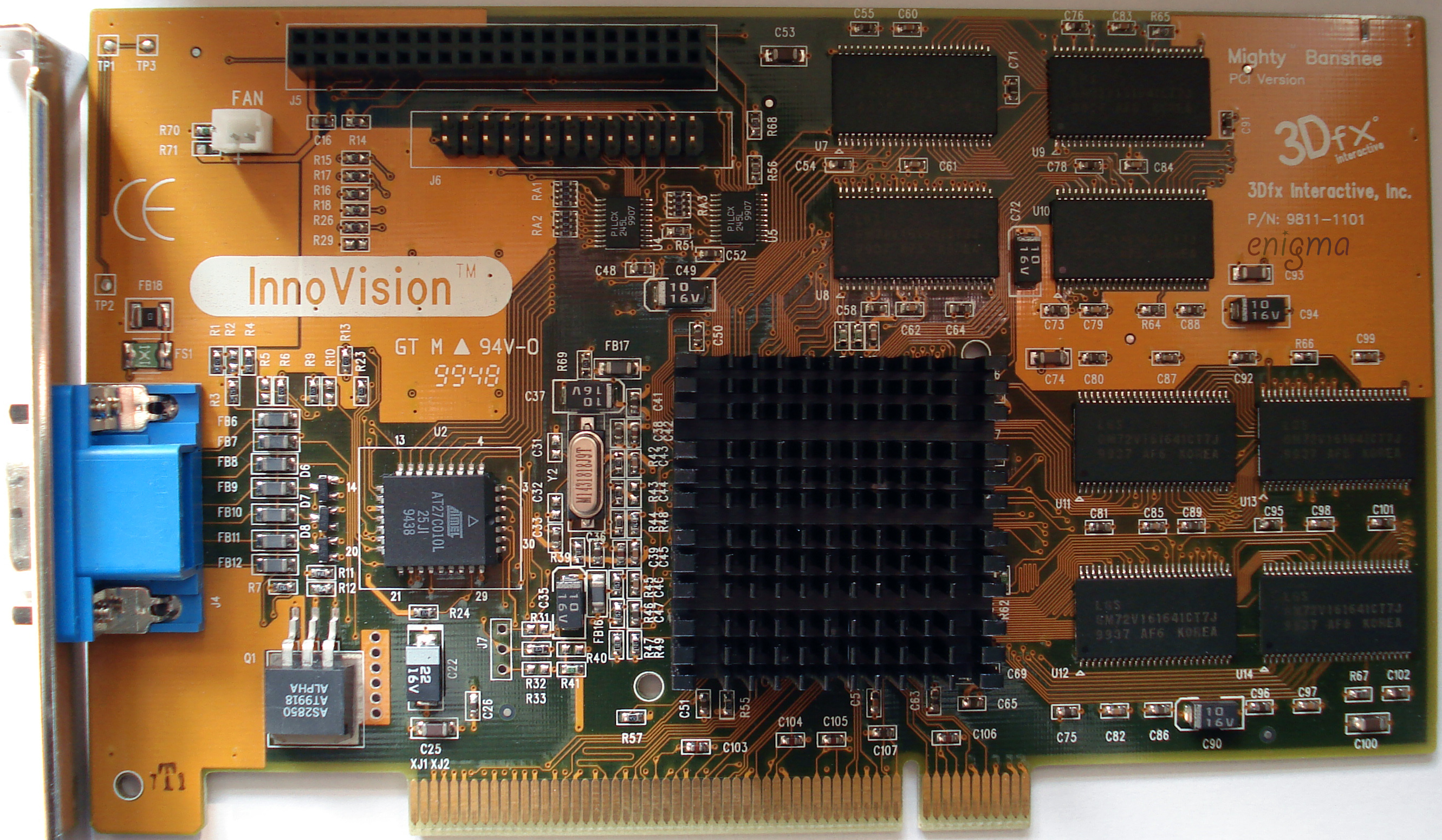

InnoVision Mighty Banshee PCI
| Technical details | |
| Name: | Mighty Banshee |
| Company: | InnoVision |
| Chipset: | 3Dfx 500-0013-03 |
| Bus: | PCI |
| RAM: | 16 MB SDRAM 7 ns 128 bit 100 MHz |
| DAC: | integrated at 250 MHz 32 bit |
| Connectors: | VGA, VESA |
| Direct3D: | 6 |
| OpenGL | ? |
| Manufactured: | 1999 |
The Banshee features the new developed 2D core that is very fast. Compared to the Voodoo2, Banshee has a slightly higher clock rate but only one texture unit. It does implement a 2x2 pixel box filter to interpolate from 24 bit to 16 bit output, which was called "22 bit quality".
Description to be done.
