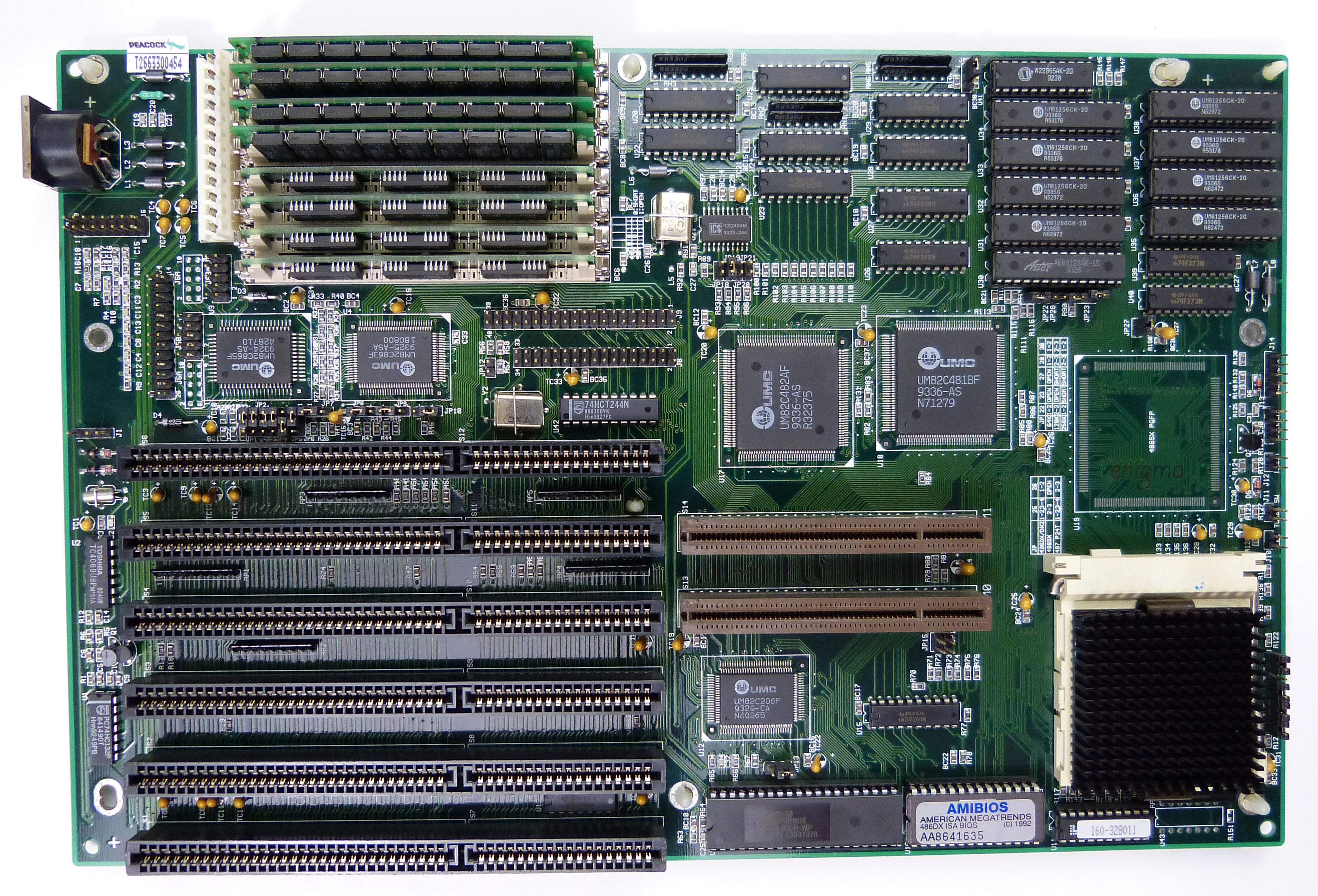

486 mainboard Elitegroup ECS-UM486V-AIO(DIP) Rev.2.0
| Technical details | |
| Name: | ECS-UM486V-AIO(DIP) Rev.2.0 |
| Company: | Elitegroup |
| Chipset: | UMC UM82C482AF, UM82C481BF, UM82C863F, UM82C865F, UM82C206F |
| CPU socket: | ZIF-Socket 3 |
| Memory: | 2 banks a 4 SIMM sockets |
| Bus: | 6x ISA 16 bit, 2x VLB |
| Connectors: | AT power, Keyboard, front-module pins, single IDE, Floppy, serial, parallel, PS/2 mouse |
| Form factor: | Baby-AT |
| Manufactured: | 1993 |
The board supports 5V 486 CPUs, has 256 kB L2 Cache and an integrated IDE controller. It uses an 486DX ISA AMI BIOS. The board was originally in a 486DX system from Peacock.
