Number Nine Revolution IV (Ticket to Ride IV)
| Technical details | |
| Name: | Revolution IV |
| Company: | Number Nine Visual Technology |
| Chipset: | Ticket to Ride IV (T2R4) at 100 MHz |
| Bus: | AGP 2x |
| RAM: | 16 MB SDRAM 8 ns at 125 MHz (Powerstrip reports 93 MHz) |
| DAC: | integrated 250 MHz |
| Connectors: | VGA |
| PCI-ID: | VENDOR 105D DEVICE 5348 |
| FCC-ID: | ? |
| Manufactured: | 1998 |
The Revolution IV is the last card from Number Nine using an own chip design.
Revolution IV performing Final Reality Benchmark and 3DMark99Max:
Revolution IV performing 3DMark2000 Demo:

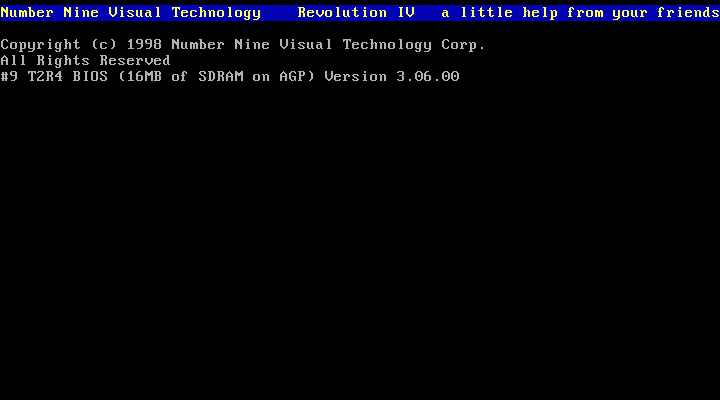

Revolution IV BIOS message:
Number Nine Revolution IV Driver
VESA Info
Additional Infos at Vintage 3D (scroll to end)
