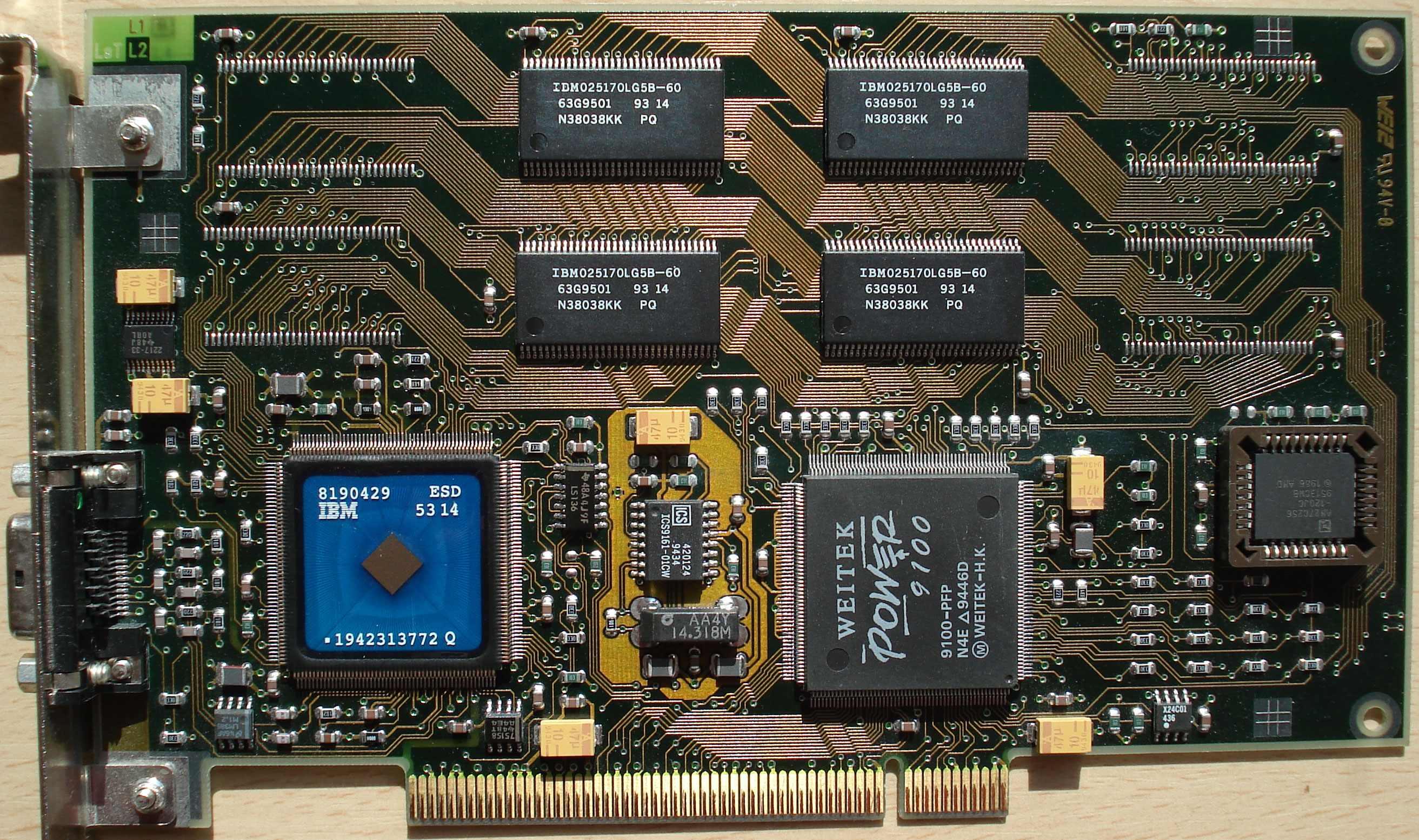

DSystems Papilio UltraCAD G1-x
| Technical details | |
| Name: | Papilio UltraCAD |
| Company: | DSystems |
| Chipset: | Weitek Power P9100 |
| Bus: | PCI |
| RAM: | 2/4 MB VRAM 60 ns 64 bit |
| DAC: | IBM Palette DAC 37RGB525CF17 170 MHz 24 bit |
| Connectors: | VGA |
| PCI-ID: | VENDOR 100E DEVICE 9100 |
| FCC-ID: | ? |
| Manufactured: | 1994 |
The Weitek Power P9100 is a 64 bit GUI accelerator incorporating the Weitek 5186 core for VGA compatibility. These cards came either with 2 or 4 MB VRAM (G1-2 / G1-4) and 170 MHz or 220 MHz DAC (G1-4 / G1-4H). They are fast in windows for an early PCI card. Since the VESA compatibility of the Weitek 5186 core is bad the driver developers implemented a hack: In the DOS window of Windows 9x you do not get a copy of the BIOS VBE extension but the graphics driver provides a full featured VBE 3.0 BIOS with much better VESA support (see VESA Info).
Manual, Driver Disks present.
DSystems Papilio UltraCAD drivers
Manual
Driver and Information about Weitek Graphics chips
VESA Info BIOS
VESA Info P91VESA TSR loaded
VESA Info in Win9x DOS window
