Terratec Maestro 32/96
| Technical details | |
| Name: | Maestro 32/96 |
| Company: | Terratec Promedia |
| Chipset: | Crystal CS4232-KQ, Dream SAM9233, SAM 8905-1, Soundfont ROMs: GMS1600N, GMS1601N, Philips TDA1517 |
| Bus: | ISA 16 bit |
| Connectors: | Speaker/Line Out, Line In 1, Line In 2, Mic In, CD In. MIDI/Game, EIDE, Waveblaster |
| Standards (DOS): | SB Pro, MSS 2.0, Adlib (4OP+ with 32 voices), MPU-401 external and internal wavetable with 4 MB ROM (GM/GS/MT-32), Game |
| FCC-ID: | ? |
| Manufactured: | 1996 |
This card is configured by ISA-PnP. It uses the Dream SAM9233 synth and the SAM 8905-1 effect processor. The waveblaster is mapped as a second MPU-401 interface. The on board ROM uses a version of the Roland Sound Canvas sound font.

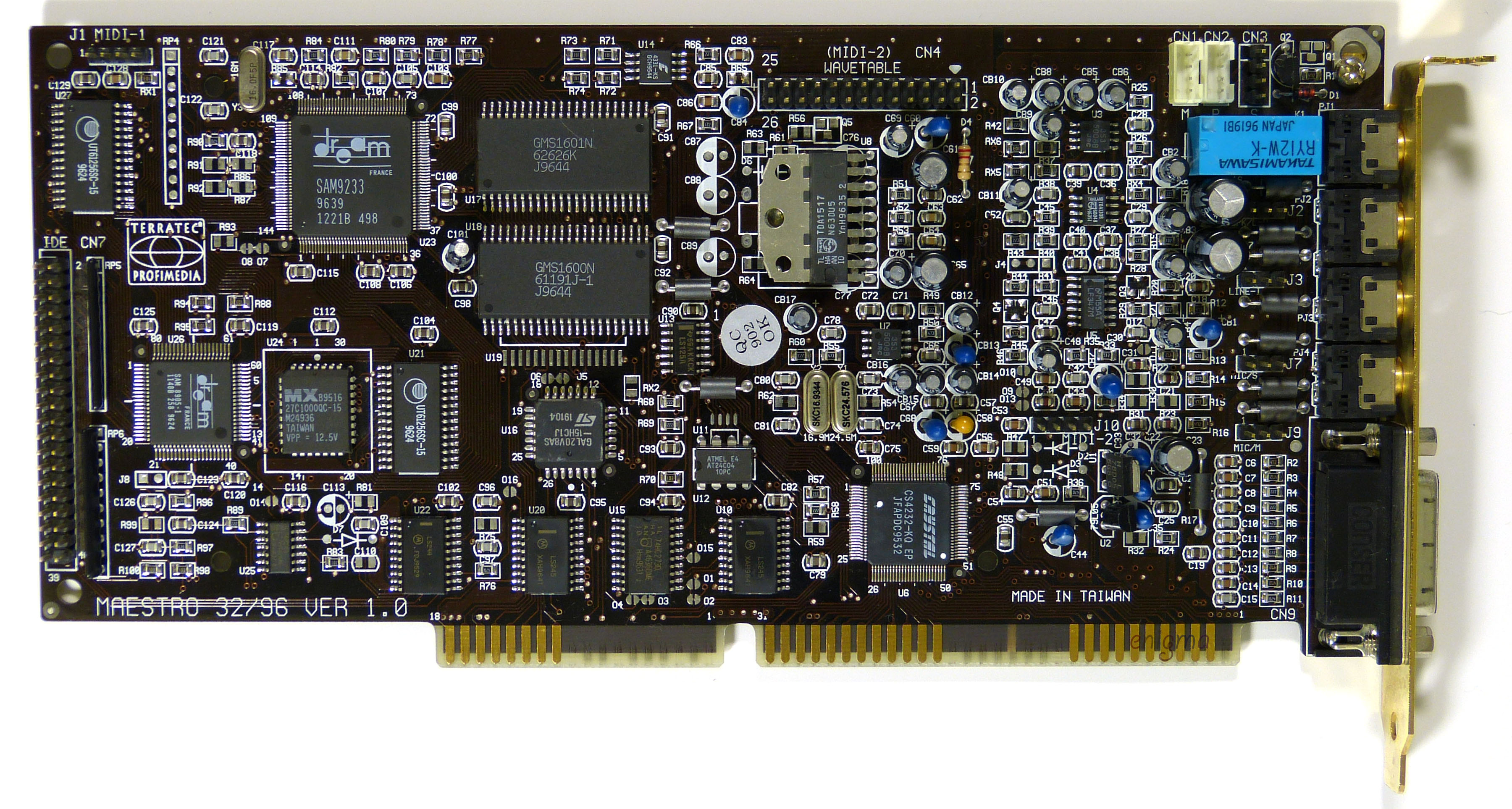

The original board has a hardware bug on fast systems (late pentiums and faster) where the mainboard bios can freeze on warmboot when detecting ISA-PnP devices. The workaround is to replace capacitor C58 with a 16V 1 microF type. This is the orange cap on the photo.
The wavetable playback quality is quite good.
