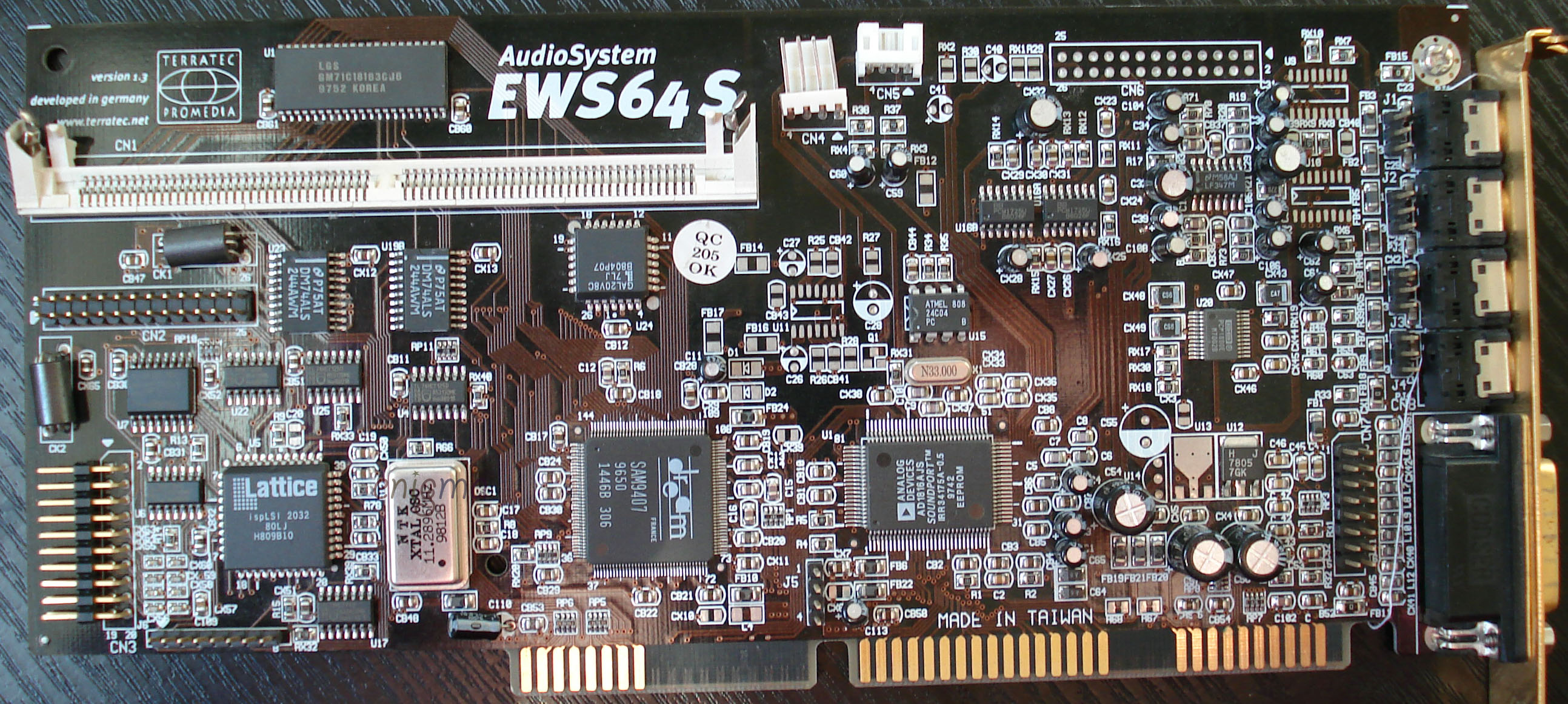

Terratec EWS64 S
| Technical details | |
| Name: | EWS64 S |
| Company: | Terratec Promedia |
| Chipset: | Analog Devices SoundPort AD1816AJS, Dream SAM9407, 2 MB RAM |
| Bus: | ISA 16 bit |
| Connectors: | Line-Out, Surround Out, Line-In, Mic-In, CD-In, Game/Midi, Radio module connector |
| FCC-ID: | ? |
| Manufactured: | 1996 |
Rev 1.3
'Late' ISA sound card that has basically two chipsets on a single card. The Dream SAM9407 DSP can be equipped with max. 64 MB Wavetable RAM as PS/2 SIMM. 2 MB Wavetable RAM are on board.
Compatibility:
AD SoundPort: SB, SB Pro, FM synthesis, external Game/MIDI port.
Dream SAM9407: GM / GS + effects
Lite version of the EWS64 XL.
