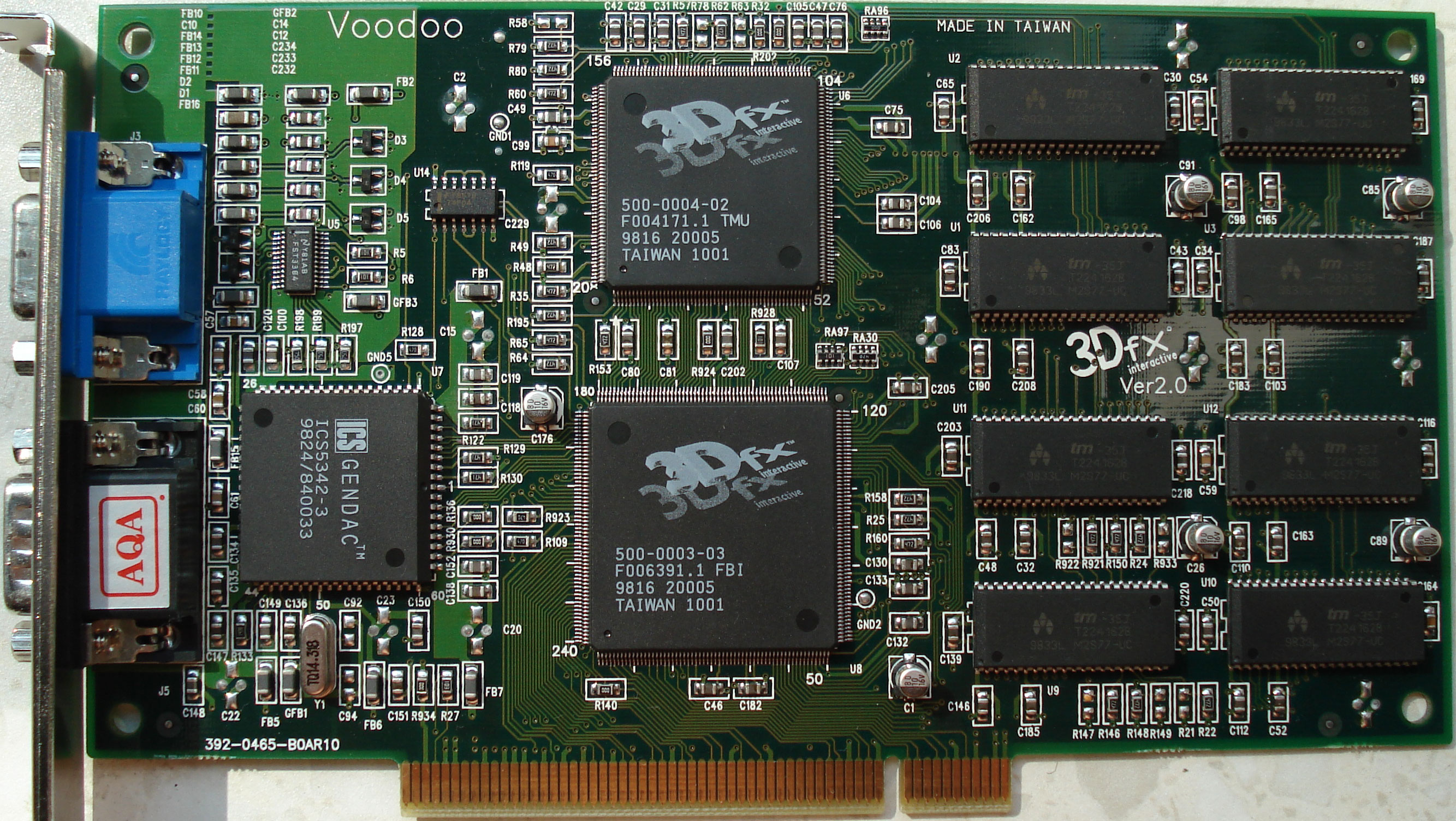

A-Trend Helios 3D, 3Dfx Voodoo
| Technical details | |
| Name: | Helios 3D |
| Company: | A-Trend |
| Chipset: | SST1 Pixelfx, Texelfx (FBI, TMU) 50 MHz |
| Bus: | PCI |
| RAM: | 2+2 MB EDO DRAM 35 ns 2x64 bit 50 MHz (Framebuffer, Texture) |
| DAC: | ICS GenDAC ICS5342-3 at 135 MHz |
| Connectors: | VGA In, VGA Out |
| Direct3D: | 5 |
| OpenGL | ? |
| Manufactured: | 1998 |
3D resolutions up to 640x480 with z-buffer. The chip uses a 4x1 pixel linear filter to generate the 16 bit color of the output pixel.
Description to be done.
