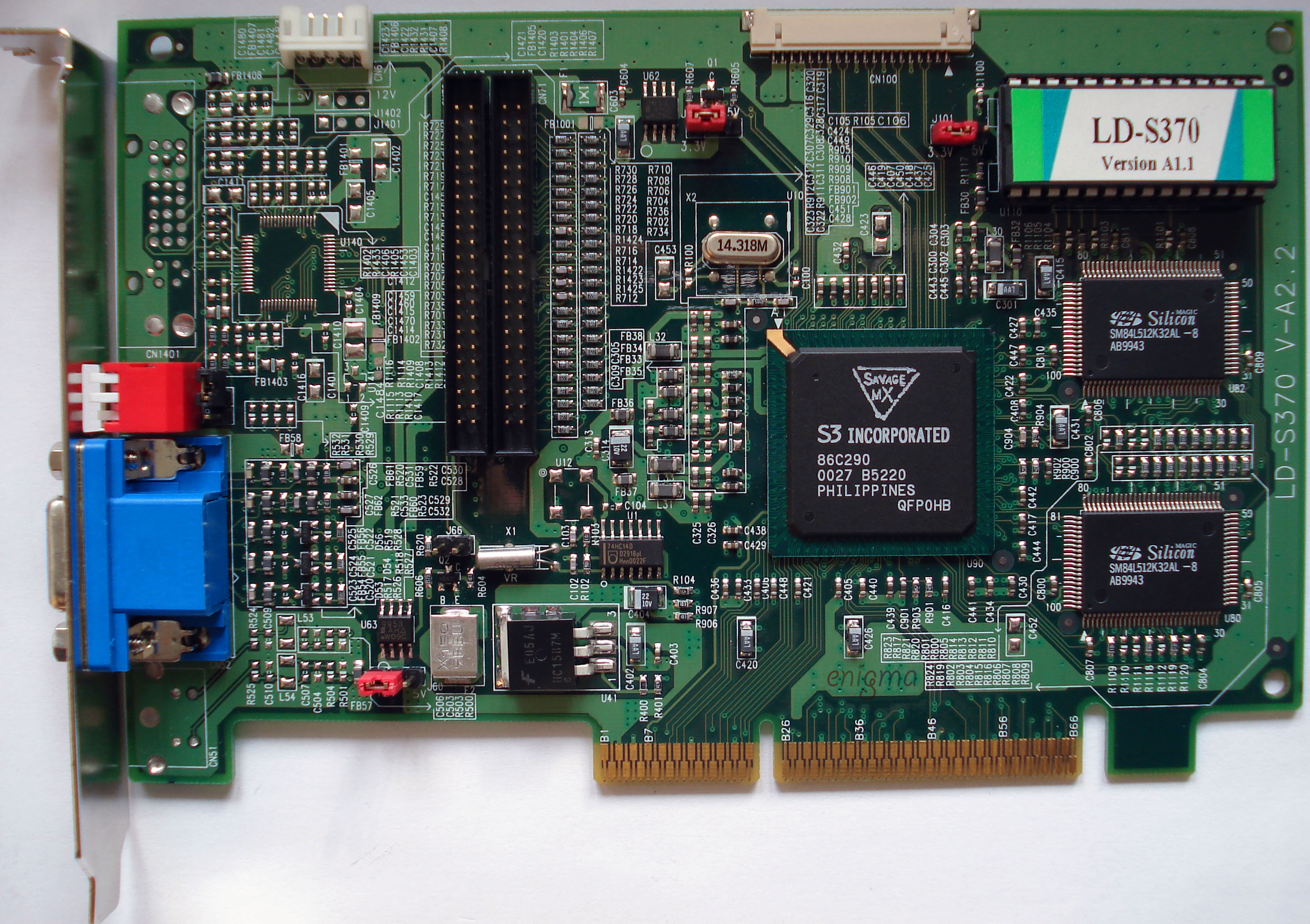

Spectrah Dynamics Inc LD-S370 Savage MX
| Technical details | |
| Name: | LD-S370 |
| Company: | Spectrah Dynamics Inc |
| Chipset: | S3 Savage MX+MV 86C290 at 100 MHz |
| Bus: | AGP 2x |
| RAM: | 4 MB SGRAM 8ns 64 bit at 100 MHz |
| DAC: | integrated 230 MHz 8/15/16/24/32 bit |
| Connectors: | VGA, LVD |
| PCI-ID: | VENDOR 5333 DEVICE 8C10 |
| FCC-ID: | ? |
| Manufactured: | 2000 |
The Savage MX was made primarily for use in Laptops and has dual display capabilities called by S3 "DuoVue". This card has a LVD connector for TFT displays which actually would be the primary screen. The backside gives an indication to preconfigure the TFT output for different resolutions. TV-Output is not implemented on this card. On CRT the card also keeps the preconfigured resolution permanently (1280x1024 at 60 Hz) even in text mode. While the chipset is AGP 4x capable the card is only AGP 2x.
S3 Drivers
VESA Info
Specification table at Wikipedia
Gallery of screenshots:
Information Panel:

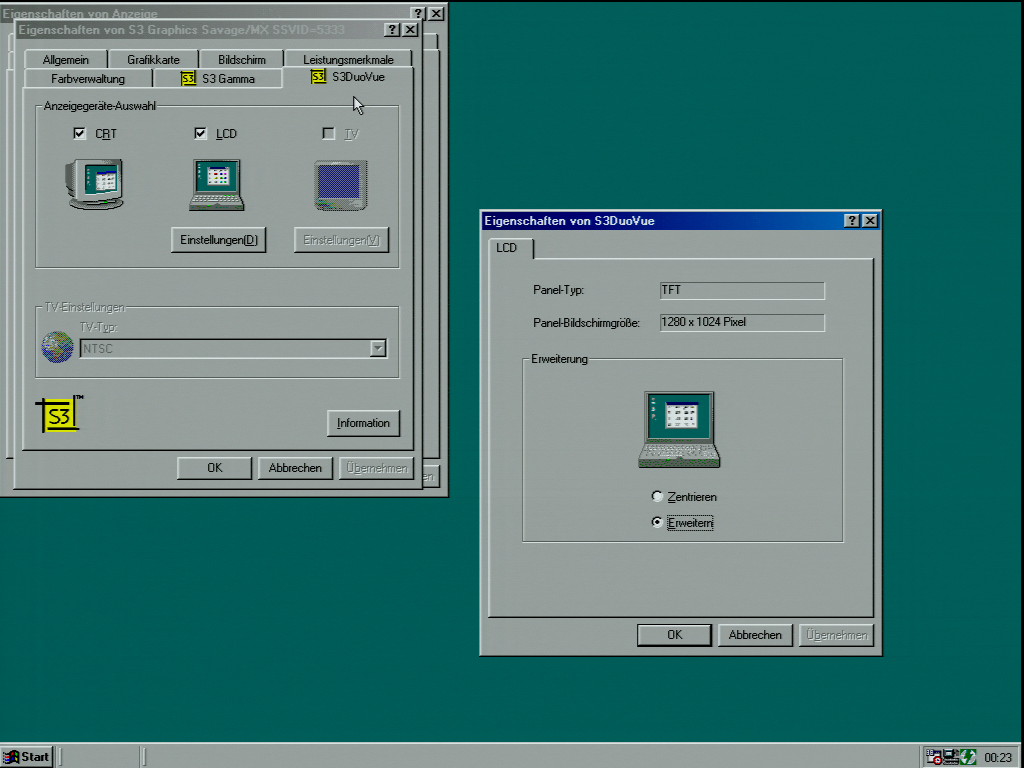

S3 DuoVue:

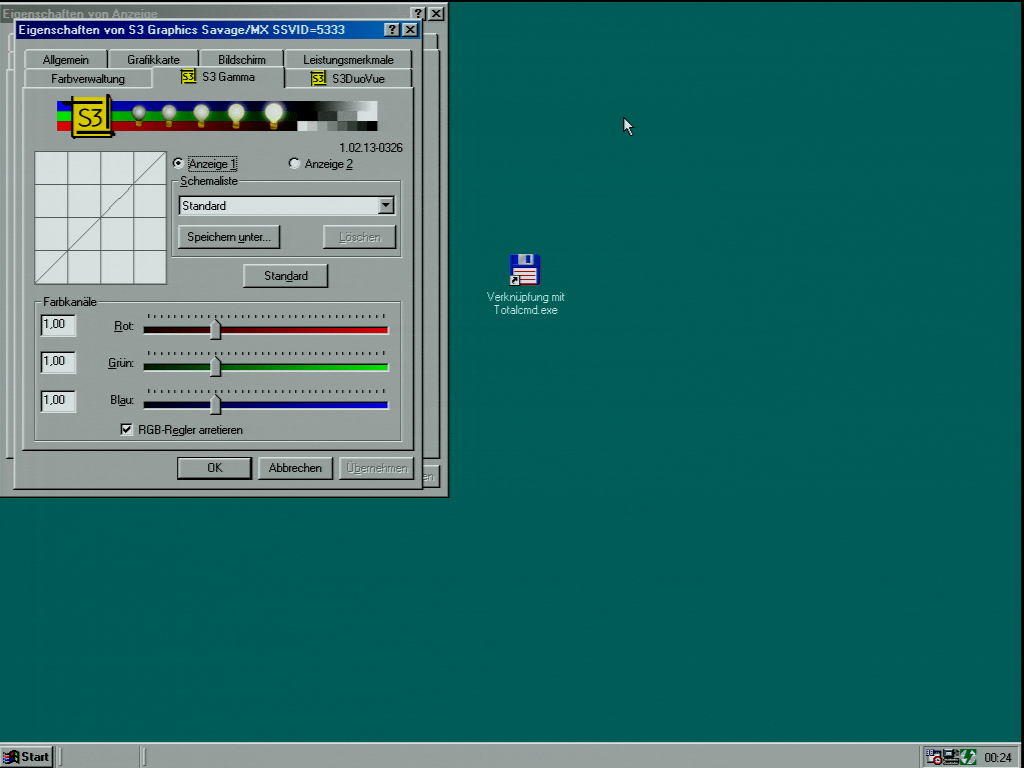

S3 Gamma:

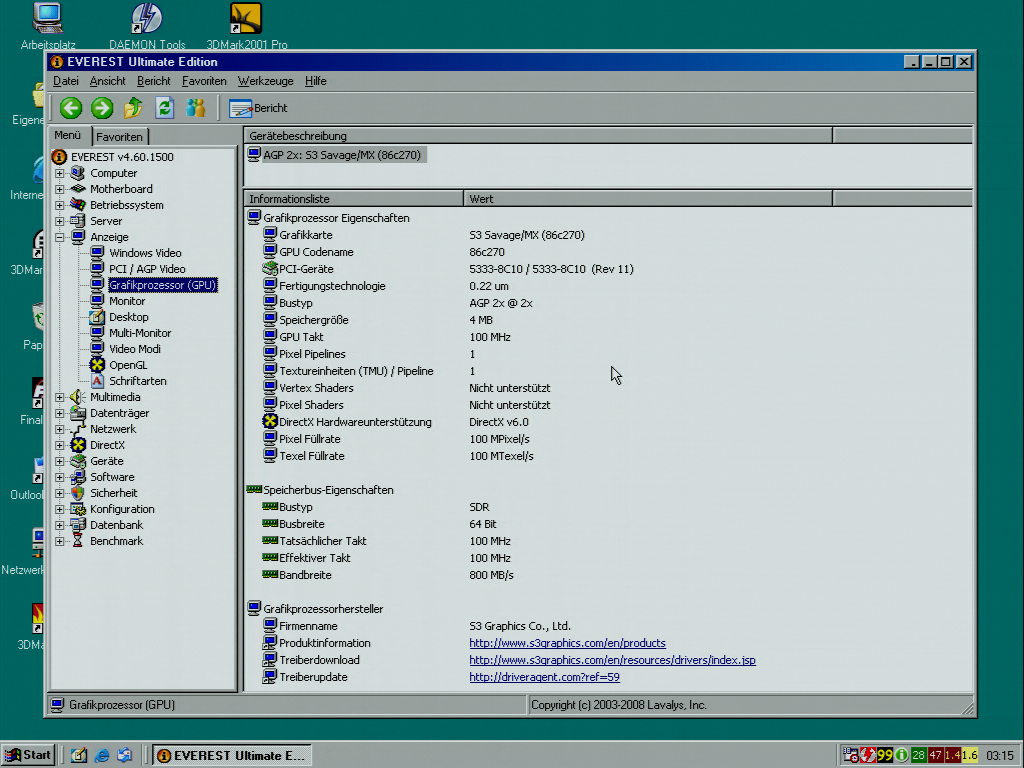

Everest:
Benchmarks were done in a very fast system compared to the 3D performance of the card.
3DMark2001SE 640x480x16:
3DMark2001SE 640x480x16:

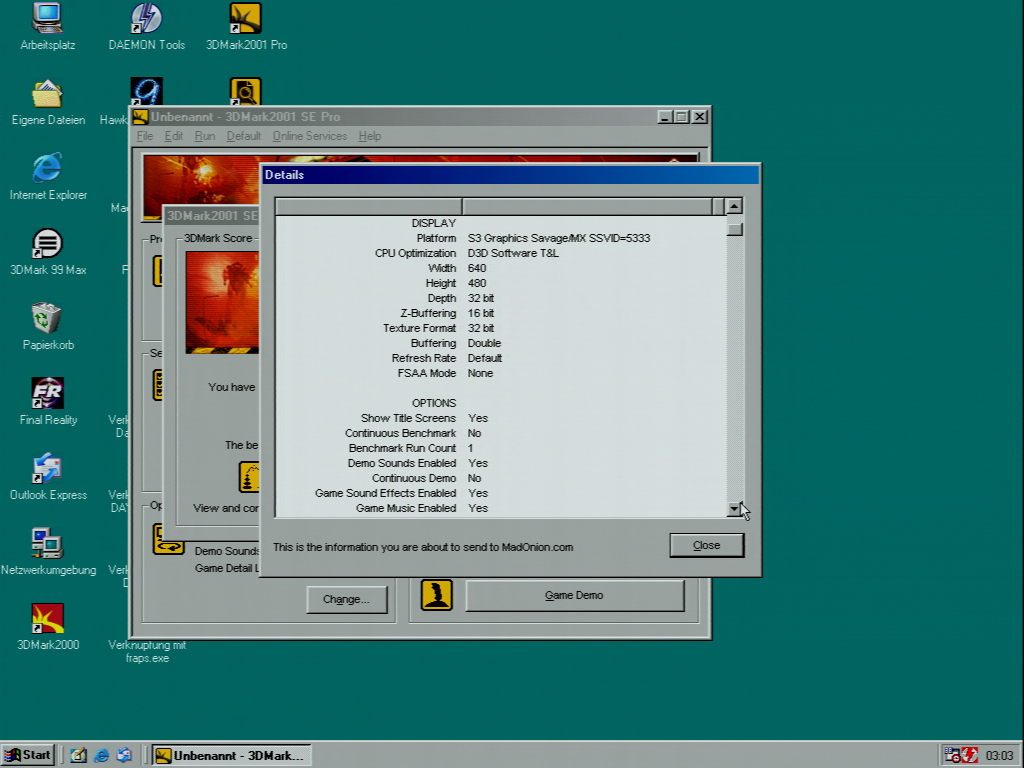

3DMark2001SE 640x480x32:

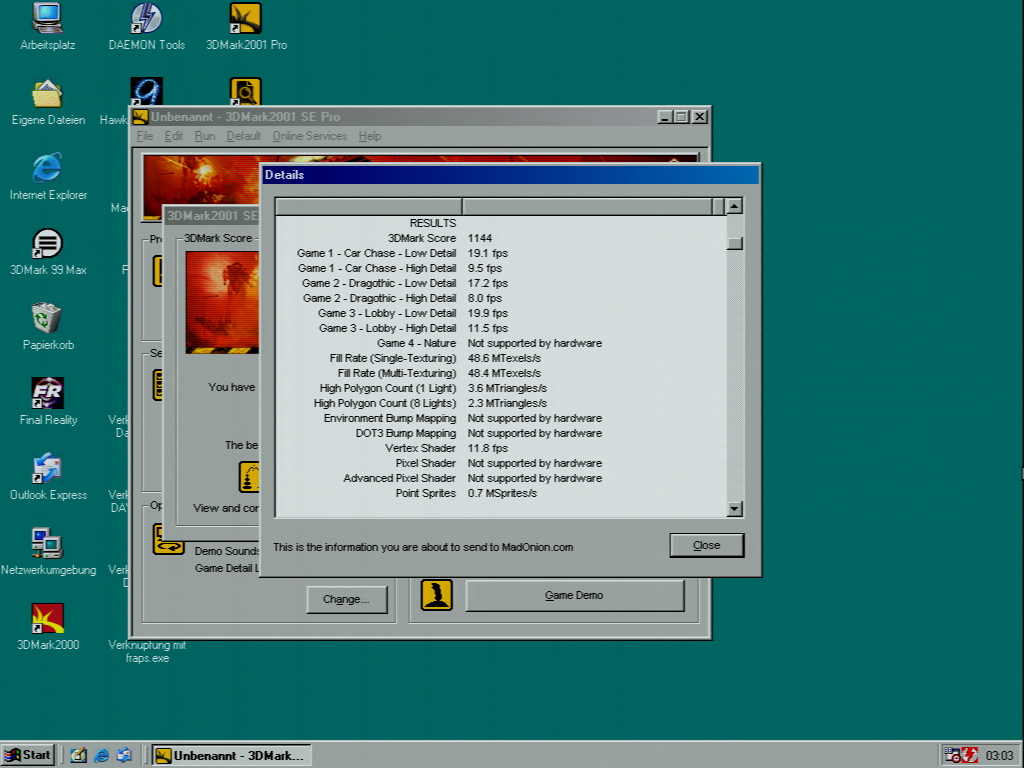

3DMark2001SE 640x480x32:

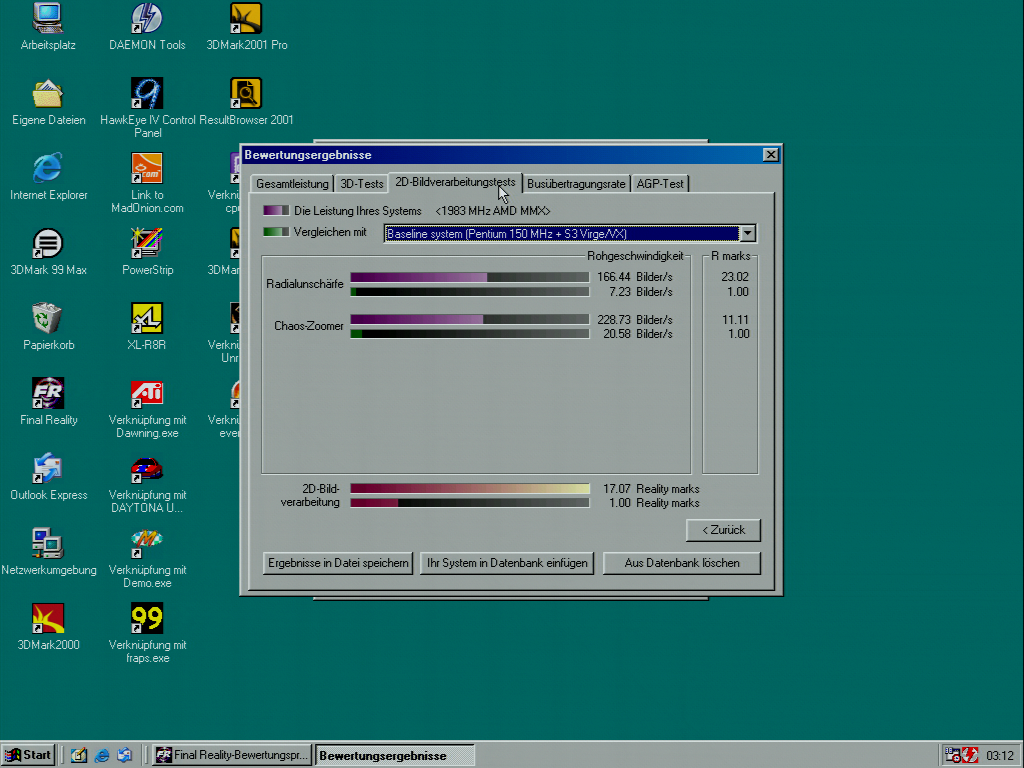

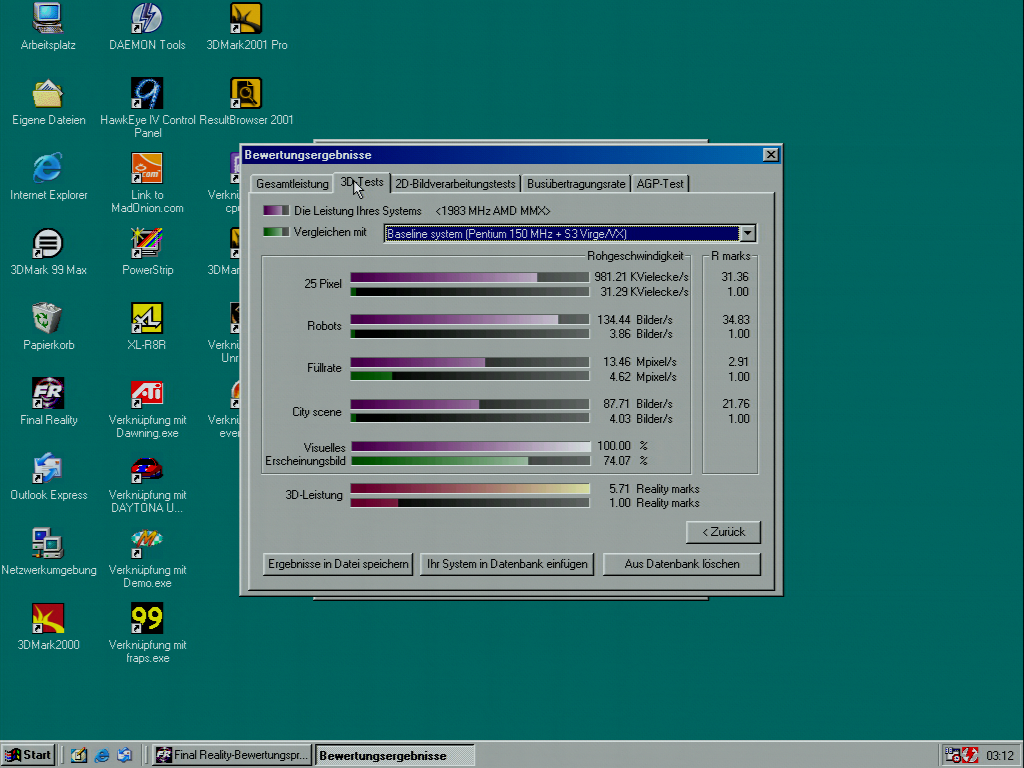

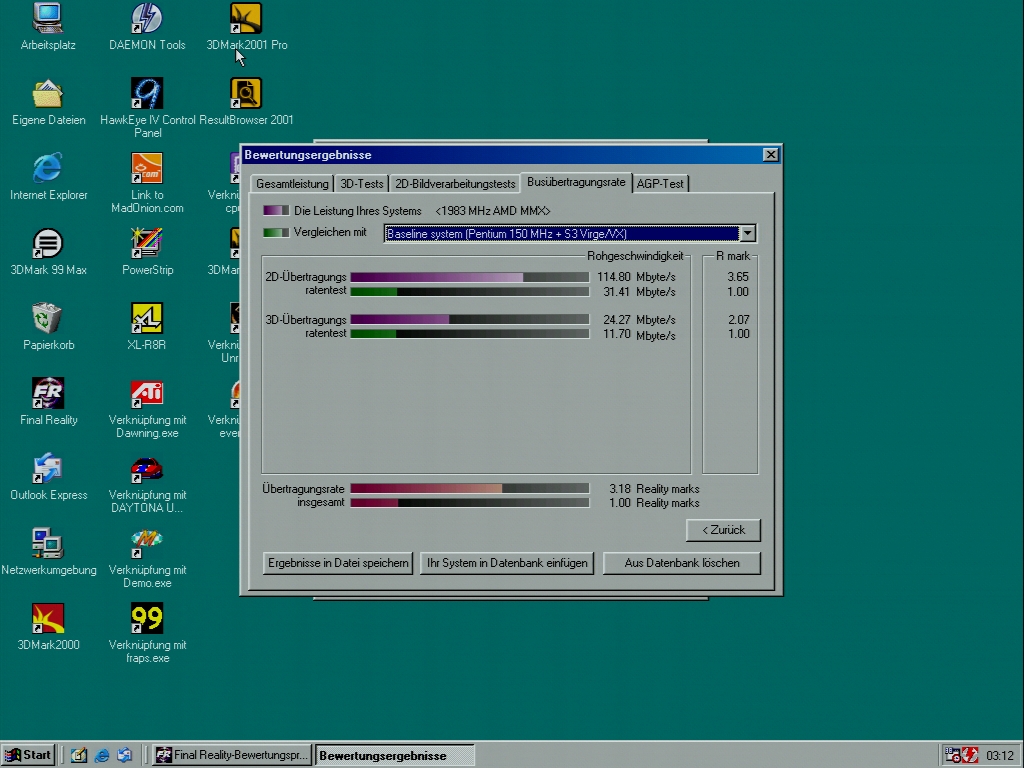

Final Reality Results:
