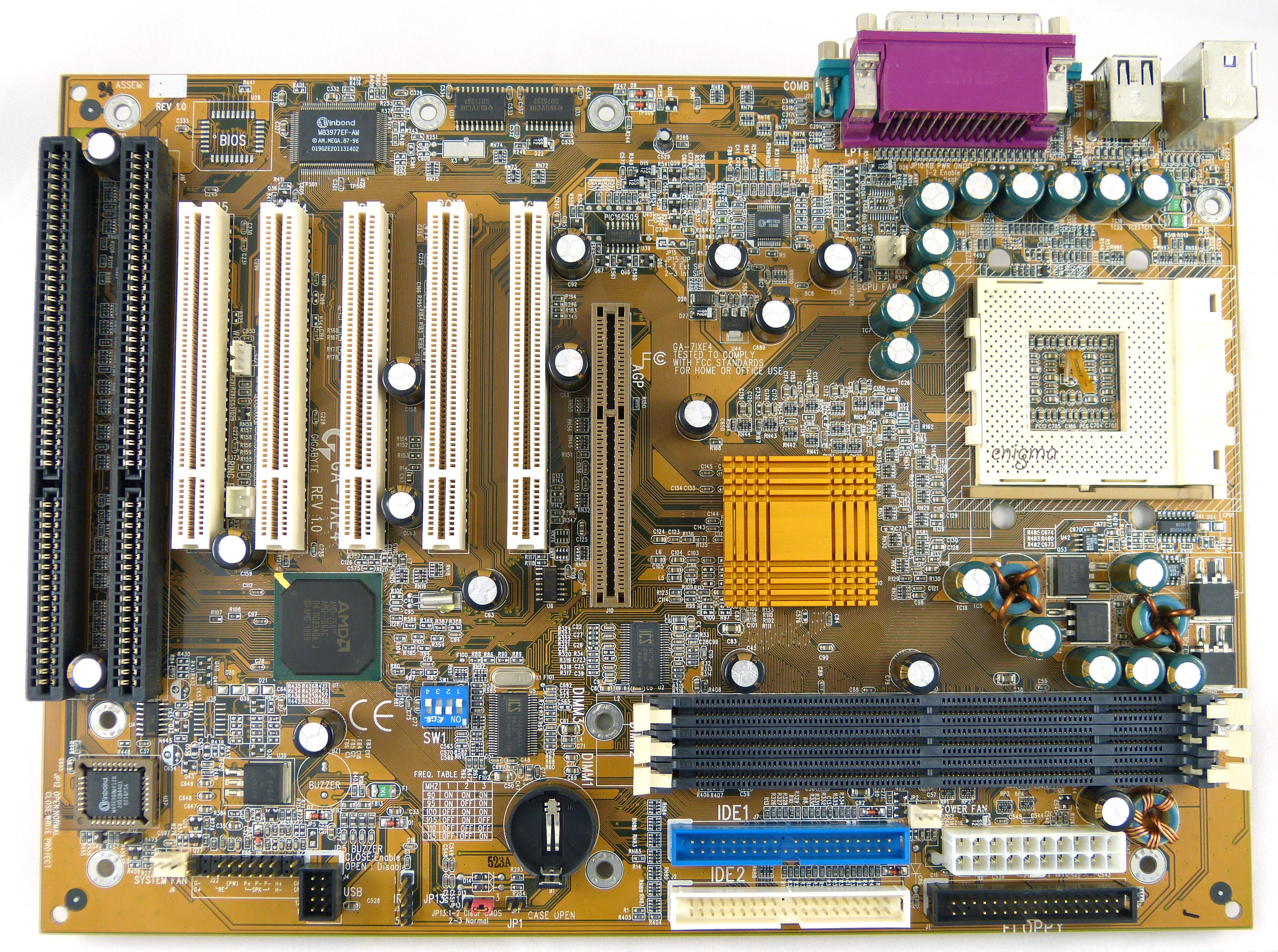

Socket 462 mainboard Gigabyte GA-7IXE4 REV 1.0
| Technical details | |
| Name: | GA-7IXE4 |
| Company: | Gigabyte |
| Chipset: | AMD Irongate, AMD750, AMD756 (Viper), Winbond WB3977EF-AW |
| CPU socket: | Socket 462 |
| Memory: | 3x DIMM, SDRAM, max. 768 MB |
| Bus: | 1x AGP 2x, 5x PCI, 2x ISA 16 bit |
| Connectors: | ATX power, PS/2 Keyboard, PS/2 mouse, front-module pins, 2x EIDE on PCI, floppy, 2x serial, parallel, 4x USB 1.1, IrDA |
| Form factor: | ATX |
| Manufactured: | 2000 |
Supported CPUs are AMD Athlons, Durons. The FSB can be set to 90/95/100/105/110/115 MHz DDR with DIP switches. The PCI bus follows PCI 2.2 and the EIDE ports support UDMA/66. The BIOS is from Award and a cell battery is used to buffer the CMOS.
It is known that the AMD750 based mainboards have sometimes stability problems with graphics cards running at AGP 2x. Since this depends on the interplay between the card and the board this has to be tested individually.
Mainboard Manual
Mainboard Drivers and BIOS
