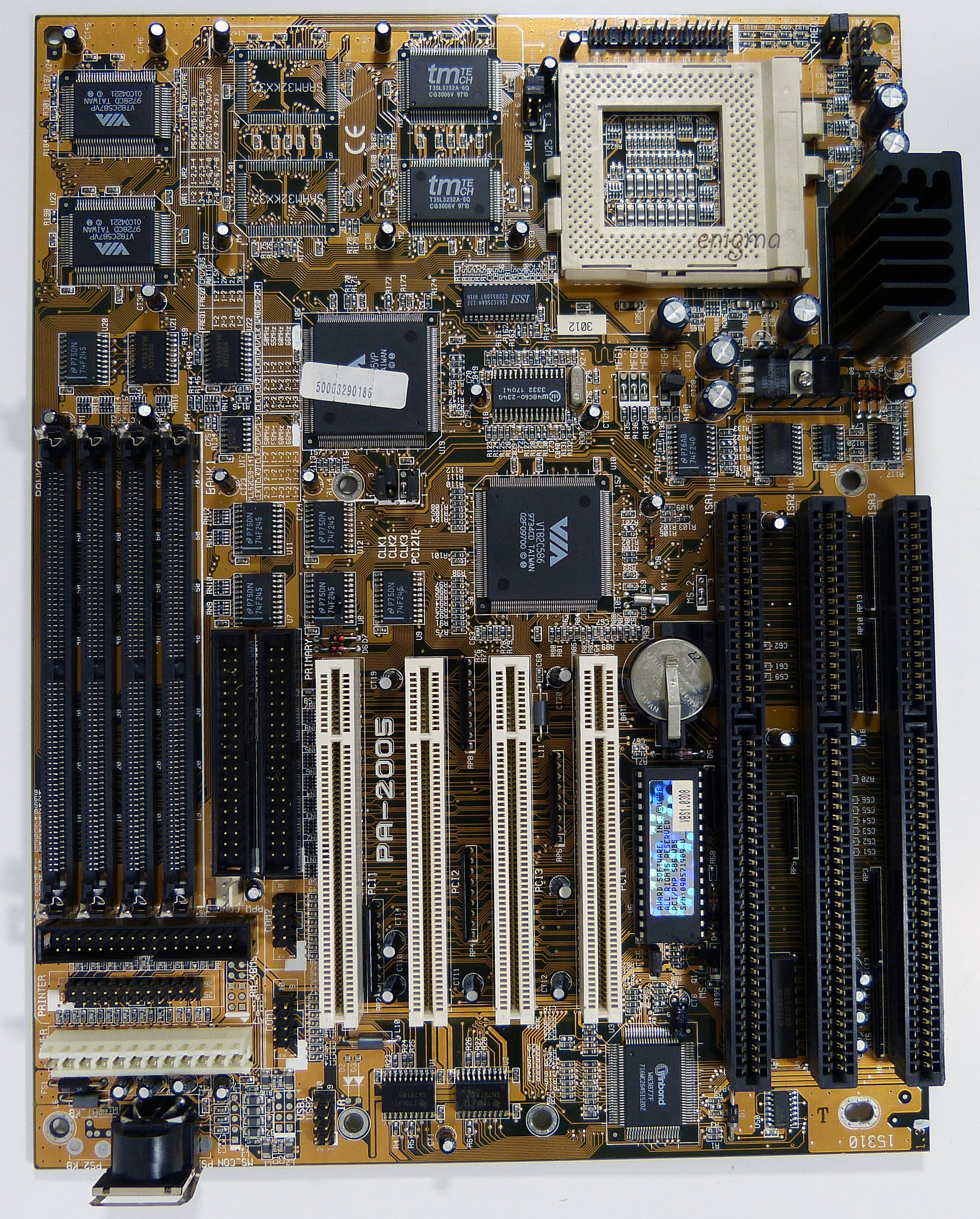

FIC PA-2005

Technical details
Name:	PA-2005
Company:	First International Computer
Chipset:	VIA Apollo VP, VT82C585VP, VT82C586, Winbond Multi I/O
CPU socket:	ZIF-Socket 7
Memory:	2 banks a 2x PS/2 SIMM sockets, max. 512 MB
Bus:	4x PCI, 2x ISA 16 bit
Connectors:	AT power, Keyboard, front-module pins, 2x EIDE on PCI, floppy, 2x serial, parallel, PS/2 mouse, USB
Form factor:	Baby-AT
Manufactured:	1997

Supported CPUs are P54C, P55C, K5, K6, 6x86, 6x86MX with max. 75 MHz FSB. The board has 256 kB pipelined burst cache and supports FPM, EDO, BEDO DRAM. The BIOS is from Award and a normal cell battery is used to buffer the CMOS. The board works also with a single PS/2 SIMM plugged.
