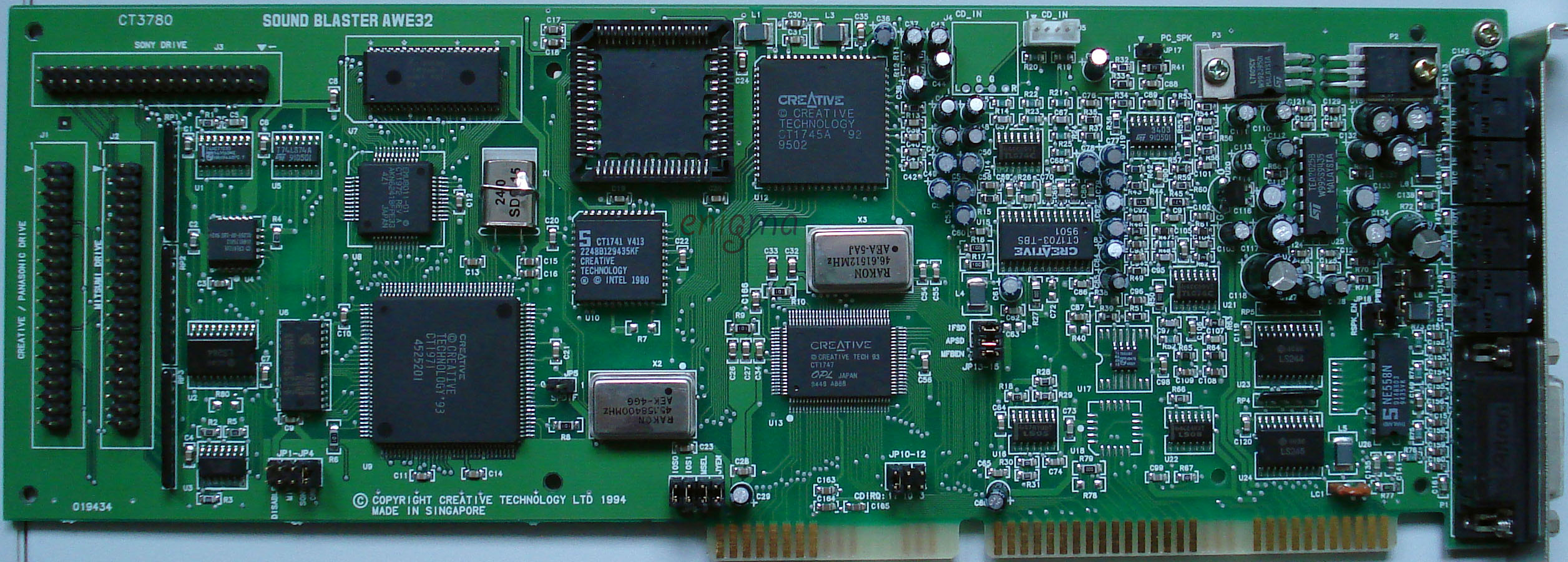

Creative Sound Blaster AWE32 Value MCD CT3780
| Technical details | |
| Name: | Sound Blaster AWE32 Value MCD |
| Company: | Creative Technology Ltd |
| Chipset: | CT1747, CT1703-TBS, CT1741, CT1745A, CT1971, CT1972 REV A |
| Bus: | ISA 16 bit |
| Connectors: | Line Out, Speaker Out, Line In, Mic In, MIDI/Game, CD In, CD-ROM Sony/Panasonic/Mitsumi |
| Standards (DOS): | SB, SB Pro (mono), SB16, Adlib, SB MPU-401 external, EMU8000 |
| FCC-ID: | ? |
| Manufactured: | 1995 |
This cards port is configured by jumper, the other resources by software.
The Sound Blaster AWE32 is capable of Stereo playback at 44 kHz 16 bit.
This card has DSP 4.13 and a free socket for a CSP chip. The EMU8000 part has 512 kB RAM and 1 MB ROM with uncompressed samples. There is no SIMM slots for memory upgrade and no waveblaster connector.
