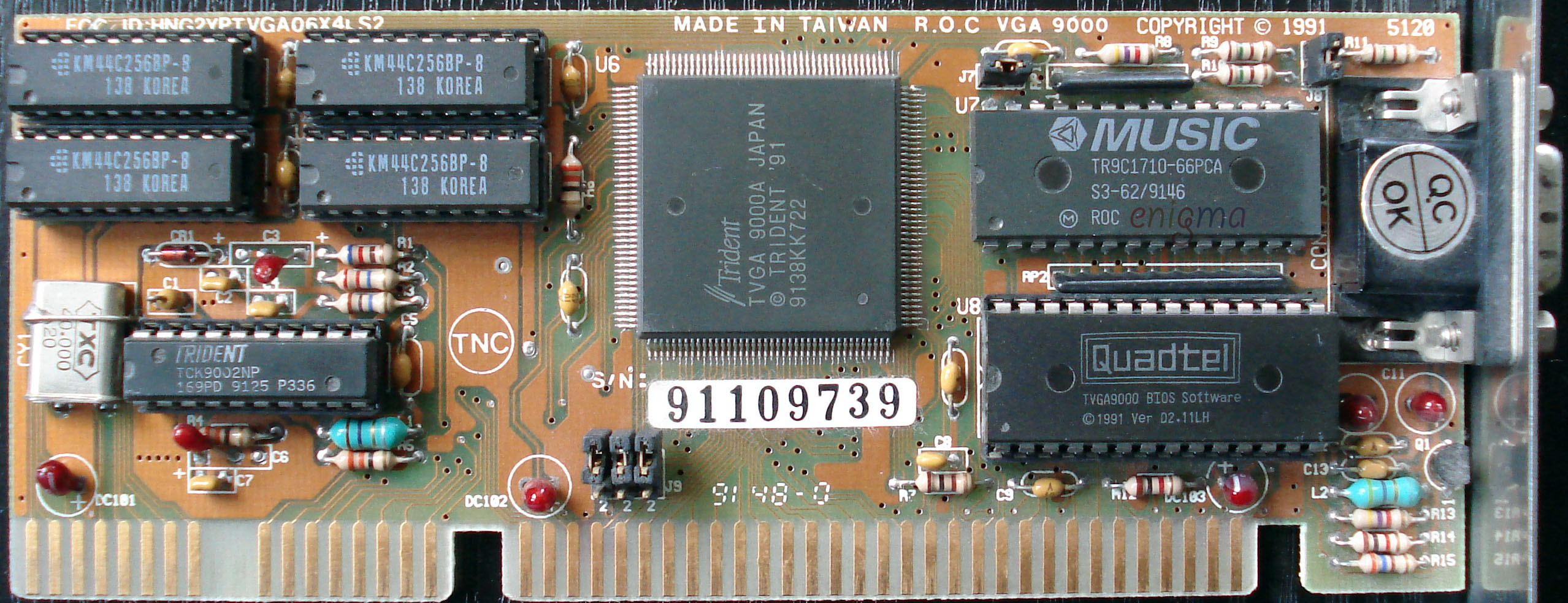

unidentified VGA card Trident TVGA 9000A
| Technical details | |
| Name: | ? |
| Company: | Trident? |
| Chipset: | Trident TVGA 9000A |
| Bus: | ISA 16 bit |
| RAM: | 512 kB FPM DRAM 80ns |
| DAC: | 66 MHz 4/8 bit, MUSIC TR9C1710-66PCA |
| Connectors: | VGA |
| FCC-ID: | HNG2YPTVGA06X4LS2 |
| Manufactured: | 1991 |
The TVGA 9000 is the low component version of the TVGA 8900. It supports up to 512 kB DRAM and resolutions up to 1024x768 non-interlaced. Other notations on the card: VGA 9000, 5120
Driver
Programming Information
DAC datasheet
TVGA 9000 datasheet
