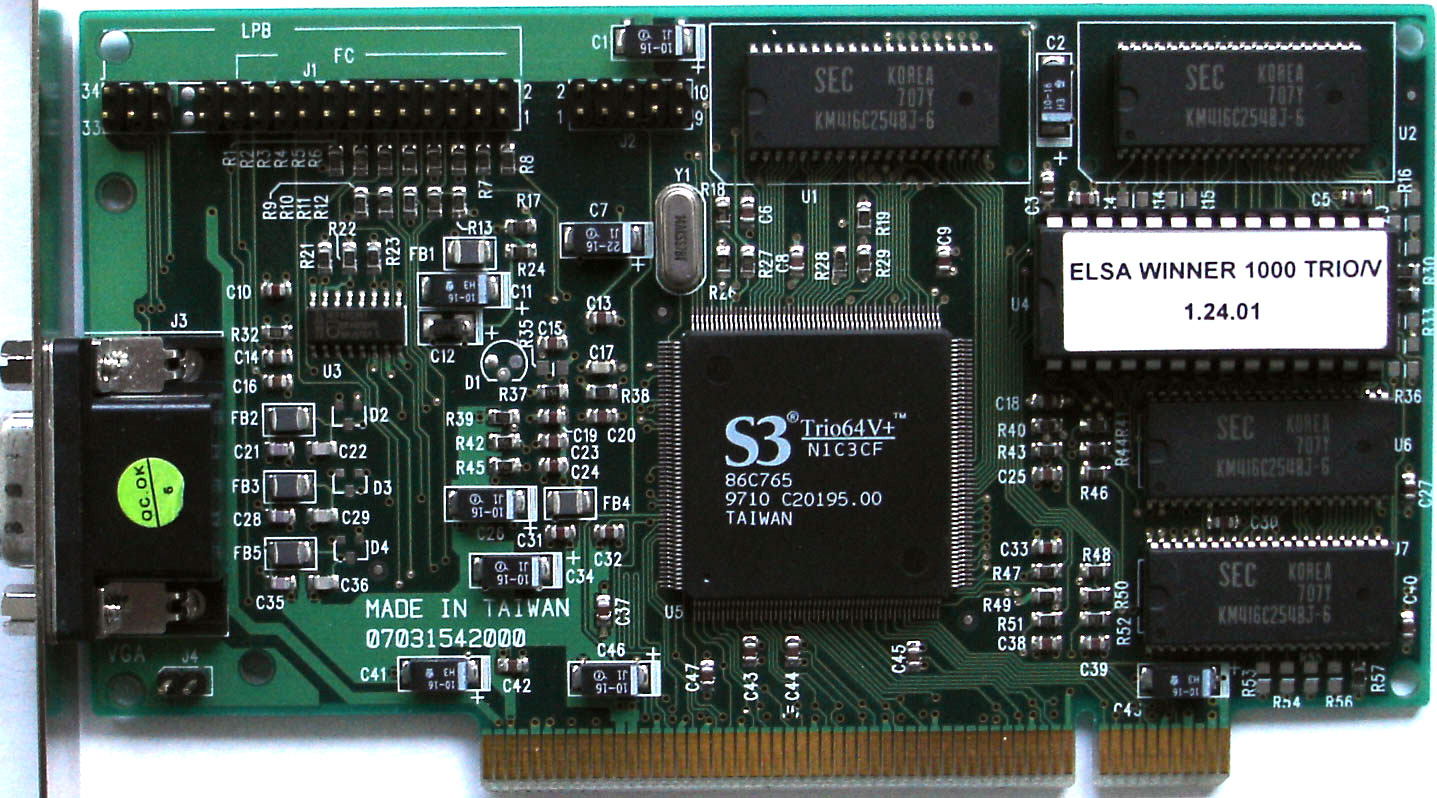

ELSA Winner 1000 TRIO/V
| Technical details | |
| Name: | Winner 1000 TRIO/V |
| Company: | ELSA Technology AG |
| Chipset: | S3 Trio64V+ 86C765 |
| Bus: | PCI |
| RAM: | 2 MB DRAM 60ns 64 bit |
| DAC: | integrated 135 MHz 8/15/16/24/32 bit |
| Connectors: | VGA, VESA |
| PCI-ID: | VENDOR 5333 DEVICE 8811 |
| FCC-ID: | KJGW1000TRIO |
| Manufactured: | 1997 |
The ELSA Winner 1000 TRIO/V is an entry level card with the cost efficient Trio64 chip. Video acceleration with Overlay, YUV to RGB colorspace conversion, horizontal linear interpolation for scaling.
1280x1024 at 256 colors with 75 Hz.
1152x864 at 256/64K colors with 100/60 Hz.
1024x768 at 256/64K colors with 128/76 Hz.
800x600 at 256/64K/16.7M colors with 200/120/76 Hz.
640x480 at 256/64K/16.7M colors with 200/190/119 Hz.
The Winner 1000Trio/V with Trio64V+ chip is prepared for future multimedia extensions like MPEG-1 audio/video decoder (with S3 Scenic/MX2 or C-Cube CL-480) or video digitizer (with Philips SAA7110/7111) via the "Scenic Highway" interface.
Simple recognizing of VESA DDC compatible monitors
